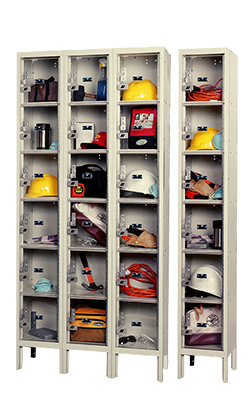

Ideal For Monitoring Locker Contents

High strength injection molded polycarbonate doors for content viewing. Safety-View Plus Box lockers are available in Four and Six Tier units, 16-person, 4-wide

Alt

Standard:

Alt

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching and Antimicrobial Recessed Handle Finger Lift Cover

Box Lockers:

Alt

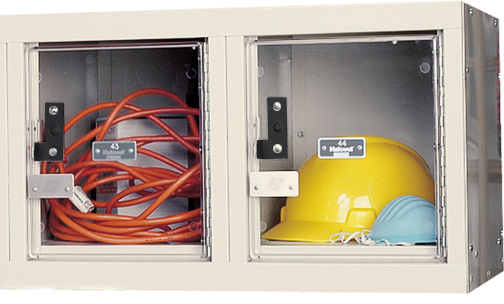

Safety-View Plus Box Lockers use a Single-point Antimicrobial thru-the-door finger pull padlock hasp on polycarbonate doors.

Safety-View:

Safety-View Polycarbonate Door Inserts

Safety-View Polycarbonate Doors allow easy monitoring of contents while keeping items secure.

Features:

Body/Frame:
Knock down (KD) with 24 gauge solid body components.
Doors:
High strength injection molded polycarbonate doors for content viewing
Handle:
Single-point projecting friction catch door pull prepared for both padlock or built-in lock.
Latching:
Single-point projecting friction catch door pull prepared for both padlock or built-in lock.
Hinges:
16 gauge continuous piano type
Hooks:
1-double prong ceiling hook and 2- single hooks per single and double tier opening. 1- double ceiling hook for triple tier.
Shelves:
16 gauge Hat shelf for single tier openings 60" and 72" high
Legs:
6" high legs are standard. Lockers without legs are available for a nominal charge.
Warranty:
2 Year
Alt

Standard:

Alt

Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching and Antimicrobial Recessed Handle Finger Lift Cover

Box Lockers:

Alt

Safety-View Plus Box Lockers use a Single-point Antimicrobial thru-the-door finger pull padlock hasp on polycarbonate doors.

Safety-View:

Safety-View Polycarbonate Door Inserts

Safety-View Polycarbonate Doors allow easy monitoring of contents while keeping items secure.

Color Selection:

See our Color Info Page for more information about colors.Color Info

Browse Photos

Notes:

Meets UL flammability standards, Polycarbonate is approved by the Consumer Product Safety Commission (CPSC16CFR 1201). All production lockers are standard with no legs unless otherwise specified. Safety-View doors are available as a retrofit to most lockers.
Safety-View Plus™ Windowed Box Lockers
Four Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
USVP1228-4 12 12 78 18 4 1-wide 4
USVP3228-4 12 12 78 18 4 3-wide 12
USVP1258-4 12 15 78 18 4 1-wide 4
USVP3258-4 12 15 78 18 4 3-wide 12
USVP1288-4 12 18 78 18 4 1-wide 4
USVP3288-4 12 18 78 18 4 3-wide 12
USVP1228-4A 12 12 78 18 4 1-wide 4
USVP3228-4A 12 12 78 18 4 3-wide 12
USVP1258-4A 12 15 78 18 4 1-wide 4
USVP3258-4A 12 15 78 18 4 3-wide 12
USVP1288-4A 12 18 78 18 4 1-wide 4
USVP3288-4A 12 18 78 18 4 3-wide 12
Six Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
USVP1228-6 12 12 78 12 6 1-wide 6
USVP3228-6 12 12 78 12 6 3-wide 18
USVP1258-6 12 15 78 12 6 1-wide 6
USVP3258-6 12 15 78 12 6 3-wide 18
USVP1288-6 12 18 78 12 6 1-wide 6
USVP3288-6 12 18 78 12 6 3-wide 18
USVP1228-6A 12 12 78 12 6 1-wide 6
USVP3228-6A 12 12 78 12 6 3-wide 18
USVP1258-6A 12 15 78 12 6 1-wide 6
USVP3258-6A 12 15 78 12 6 3-wide 18
USVP1288-6A 12 18 78 12 6 1-wide 6
USVP3288-6A 12 18 78 12 6 3-wide 18
4-Wide Wall Mount
Product Width Depth Height Opening Height Tier Openings per Group Assembled
USVP1482-4WM 48 18 14-3/4 12 4-Wide Wall Mount 4
USVP1482-4WMA 48 18 14-3/4 12 4-Wide Wall Mount 4
16-Person Unit
Product Width Depth Height Opening Height Tier Openings per Group Assembled
USVP1788-16 72 18 78 12 16-Person Unit 16
USVP1788-16A 72 18 78 12 16-Person Unit 16
Safety-View Production Lockers
Safety-View-Plus Box Lockers
Product Description Width Depth Height Opening Height
Safety-View Plus™ 4-Wide Wall Mount Production Lockers 4-Wide Wall Mount 48" 18" 14-3/4" 12"
